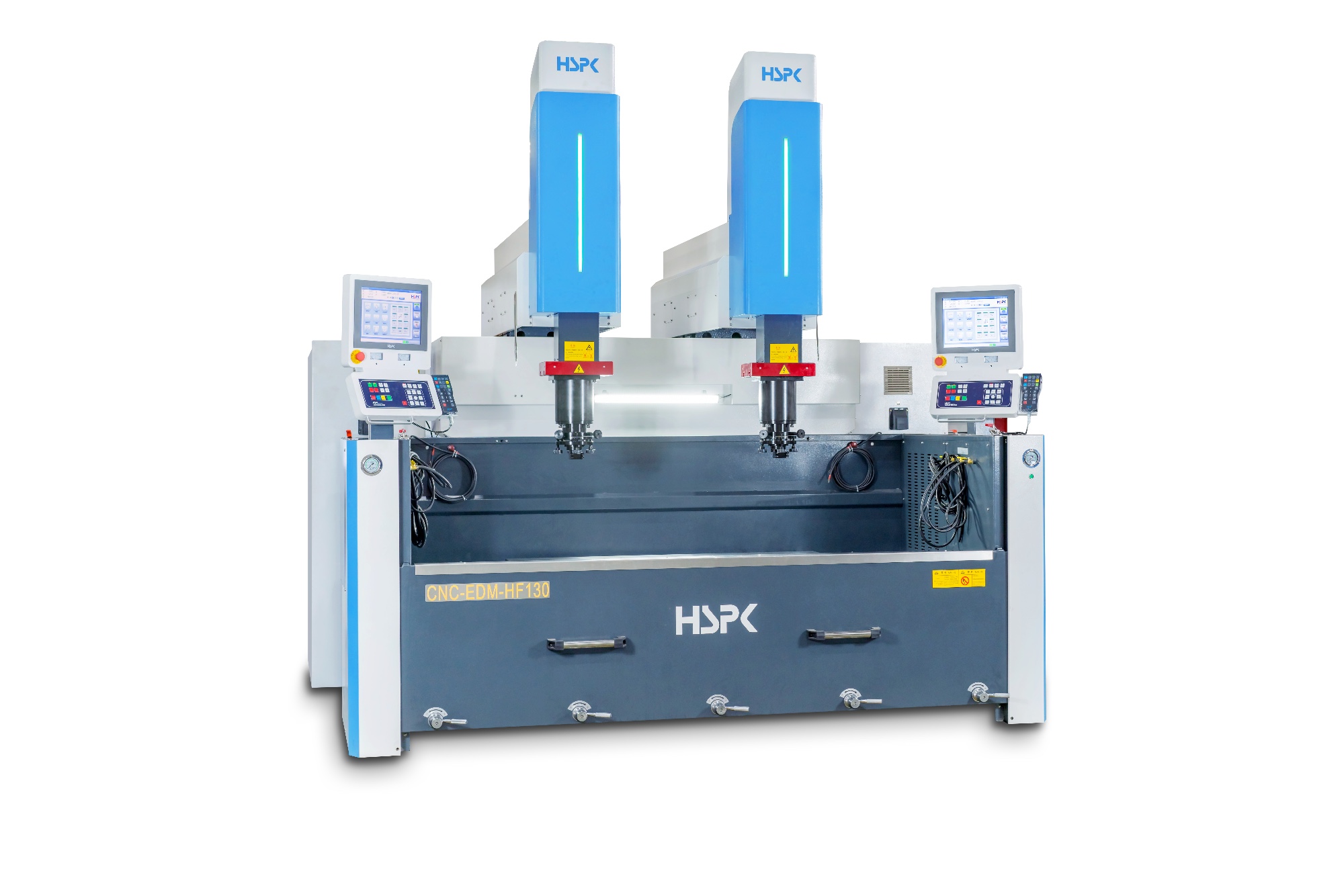

X/Y/Z Travel: (800+800)x600x400mm
Working table size: 1500x800mm
Working tank size: 2500x1300x650mm
Machine dimension: 3100x38000x3100mm
Widely used in making
2W/3W/4W Molds / Bumper / Grille Fender A/B/C/ D Pillar / Door panel / Dashboard Household Molds / Furniture Molds Aerospace / Military area / 3C molds
Product Details
| Work table size(LxW) | 1500x800mm |
| Travel(X/Y/Z) | L: 800x600x400mm R: 800x600x400mm |
| Working tank size(LxWxH) | 2500x1300x650mm |
| Max. electrode weight | 80kg |
| Max. workpiece weight | 6000kg |
| Electrode holder to worktable distance | 600-1000mm |
| Oil tank capacity | 1550L |
| Filter precision | 5um |
| Machine weight | 10000kg |
| Machine dimension(LxWxH) | 3100x3800x3100mm |
Technical Performance
* Oeration system: WINDOWS base
* 15'' LCD touch screen
* Portable generator box
* Intelligent positioning fuction
* High speed AJC tool lifting
* Different type orbiting function
* Expert data base
* Special circuit for hard alloy
* User-friendly
* Best surface roughness: Ra 0.2um
* Machining effeciency: 500mm3/min
* Electrode wear-out: 0.10%
