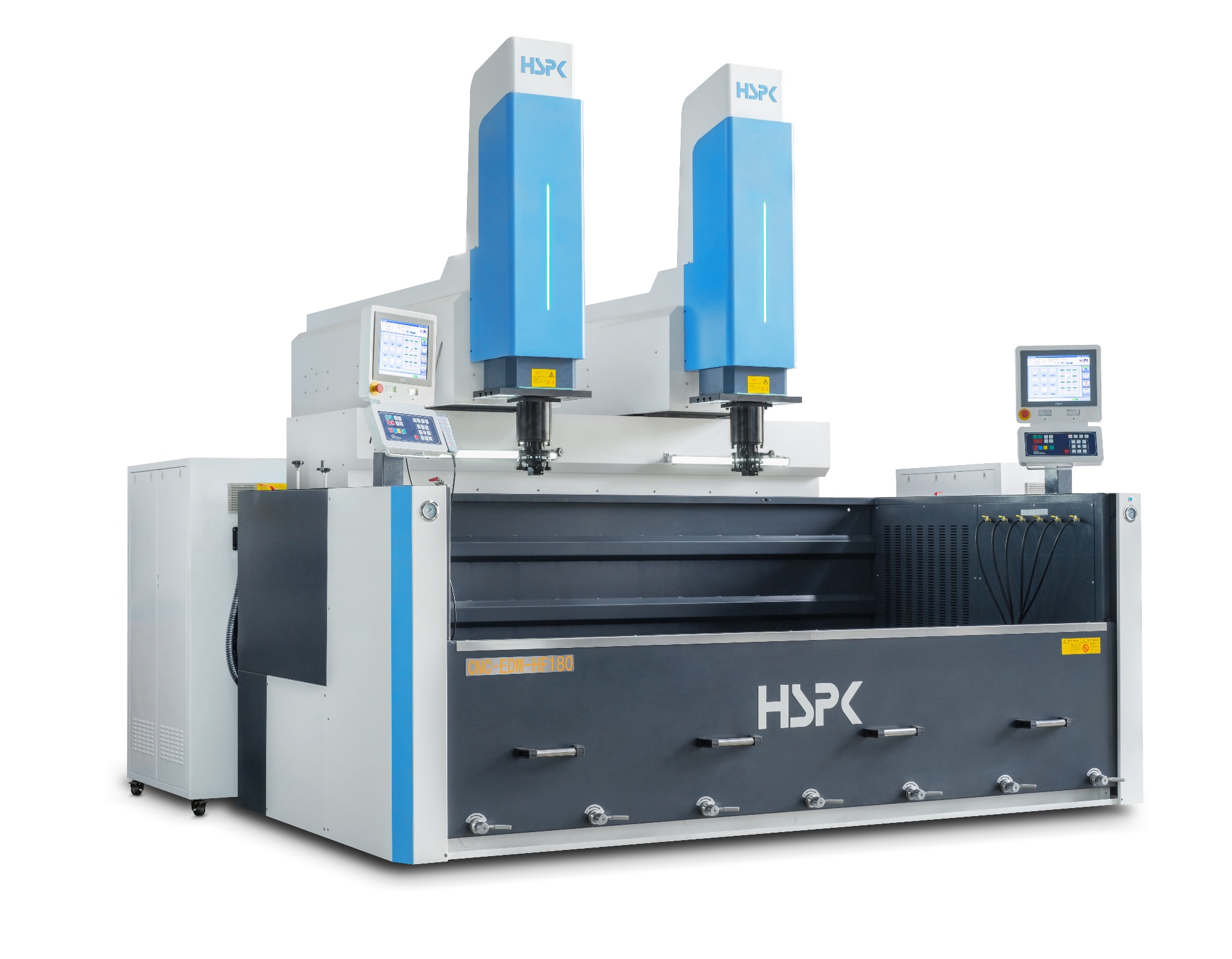

X/Y/Z Travel: (1000+1000)x700x500mm
Working table size: 2000x1000mm
Working tank size: 3500x1800x850mm
Machine dimension: 4100x4600x3850mm
Widely used in making
2W/3W/4W Molds / Bumper / Grille Fender A/B/C/ D Pillar / Door panel / Dashboard Household Molds / Furniture Molds Aerospace / Military area / 3C molds
Product Details
| Work table size(LxW) | 2000x1000mm |
| Travel(X/Y/Z) | L: 1000x700x500mm R: 1000x700x500mm |
| Working tank size(LxWxH) | 3500x1800x850mm |
| Max. electrode weight | 200kg |
| Max. workpiece weight | 10000kg |
| Electrode holder to worktable distance | 800-1300mm |
| Oil tank capacity | 2160L |
| Filter precision | 5um |
| Machine weight | 13000kg |
| Machine dimension(LxWxH) | 4100x4600x3850mm |
Technical Performance
* Oeration system: WINDOWS base
* 15'' LCD touch screen
* Portable generator box
* Intelligent positioning fuction
* High speed AJC tool lifting
* Different type orbiting function
* Expert data base
* Special circuit for hard alloy
* User-friendly
* Best surface roughness: Ra 0.2um
* Machining effeciency: 500mm3/min
* Electrode wear-out: 0.10%
