X/Y/Z Travel: 700x400x300mm
Working table size: 900x500mm
Working tank size: 1400x850x500mm
Machine dimension: 2440x2550x2800mm
Widely used in making
2W/3W/4W Molds / Bumper / Grille Fender A/B/C/ D Pillar / Door panel / Dashboard Household Molds / Furniture Molds Aerospace / Military area / 3C molds

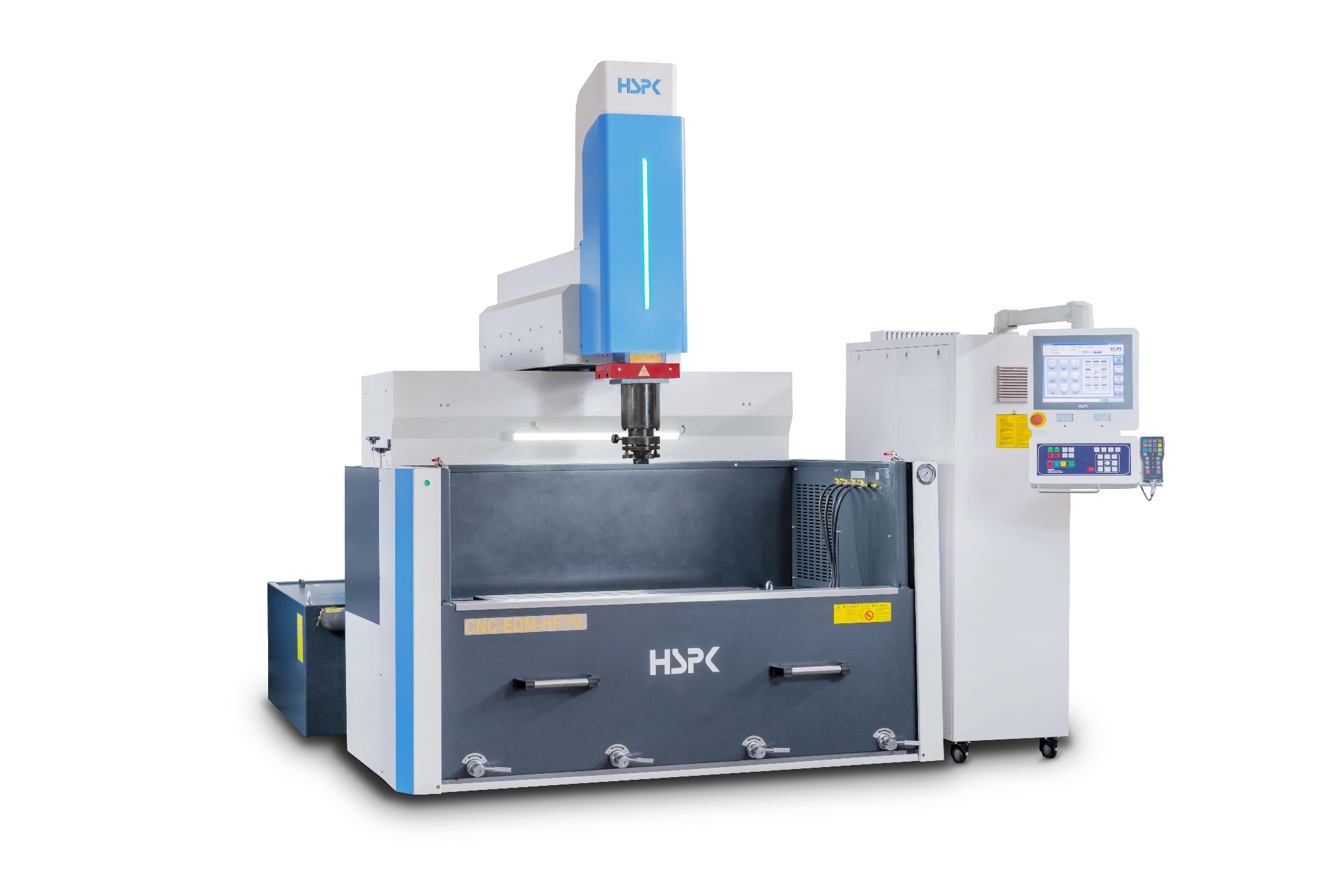

Product Details
| Work table size(LxW) | 900x400mm |
| Travel(X/Y/Z) | 700x400x300mm |
| Working tank size(LxWxH) | 1400x850x500mm |
| Max. electrode weight | 50kg |
| Max. workpiece weight | 3000kg |
| Electrode holder to worktable distance | 500-800mm |
| Oil tank capacity | 860L |
| Filter precision | 5um |
| Machine weight | 5000kg |
| Machine dimension(LxWxH) | 2440x2550x2800mm |
Technical Performance
* Oeration system: WINDOWS base
* 15'' LCD touch screen
* Portable generator box
* Intelligent positioning fuction
* High speed AJC tool lifting
* Different type orbiting function
* Expert data base
* Special circuit for hard alloy
* User-friendly
* Best surface roughness: Ra 0.2um
* Machining effeciency: 500mm3/min
* Electrode wear-out: 0.10%
