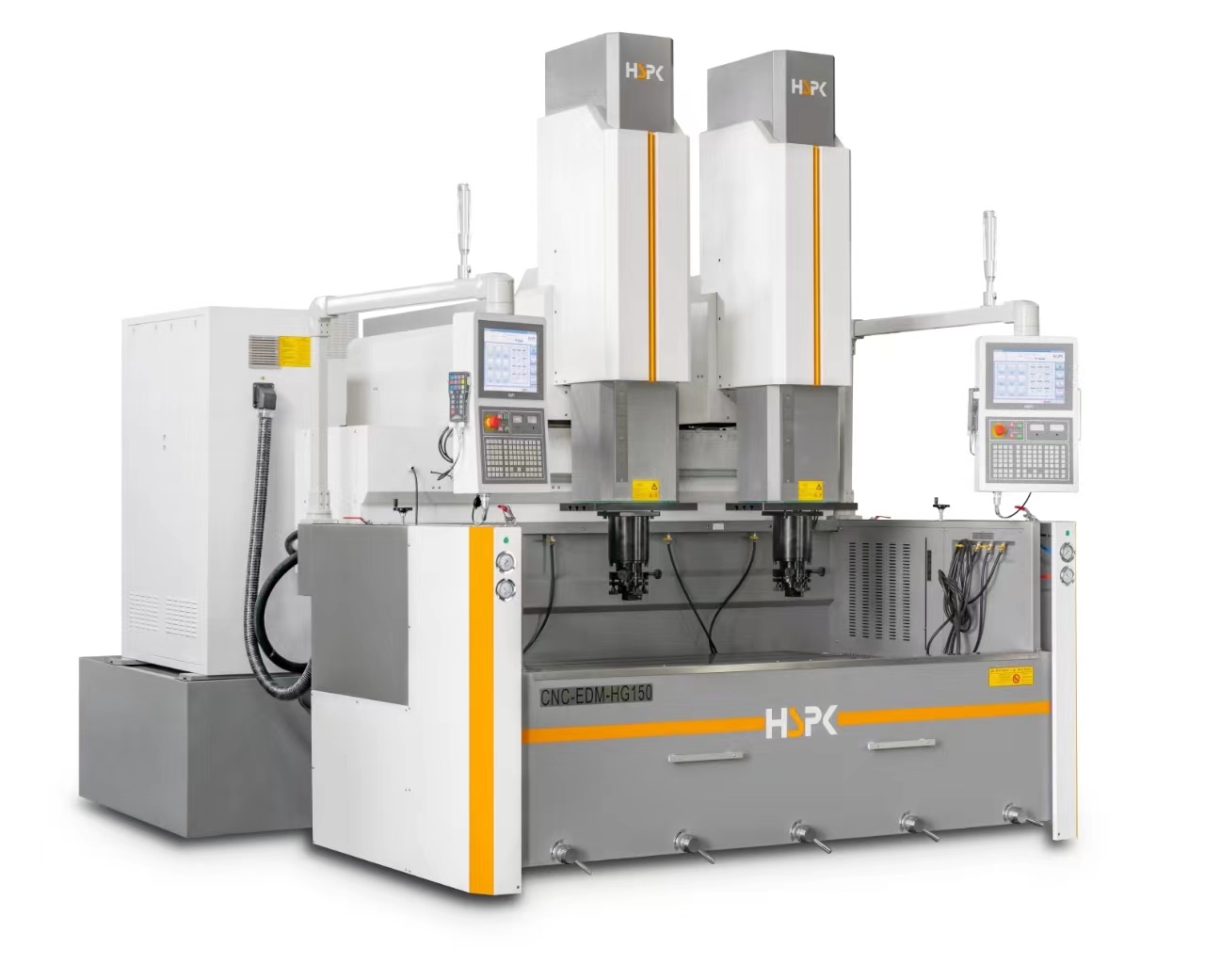

CNC EDM HG150

X/Y/Z Travel: (1000+1000)x600x500mm

Worktable size: 1700x900mm

Working tank size: 2500x1400x700

Machine Dimension: 3400x4450x3400mm

Widely used in making:
2W/3W/4W Molds / Bumper / Grille Fender
A/B/C/ D Pillar / Door panel / Dashboard Household Molds / Furniture Molds Aerospace Military area / 3C molds

EMAIL

Product Details

Worktable size(LxW)
1700x900mm
Travel(X/Y/Z)
L(1000x500x400)mm  R(1000x500x400)mm
Working tank size(LxWxH)2500x1300x700mm
Max. electrode weight150kg
Max. workpiece weight9000kg
Electrode holder to worktable distance500-1000mm
Oil tank capacity 3500L(Immersion)
Filter precision5um
Machine weight11000kg
Machine dimension(LxWxH)3400x4560x3470mm


System Main Function

* Latest WINDOWS base operation system

* Intelligent positioning function

* High speed AJC tool lifting

* Auto centering

* Accurate conpensation

* Automatic memory fuction

* Power reset

* Expert data base

* Different type orbinting function

* User-friendly
